Key Features

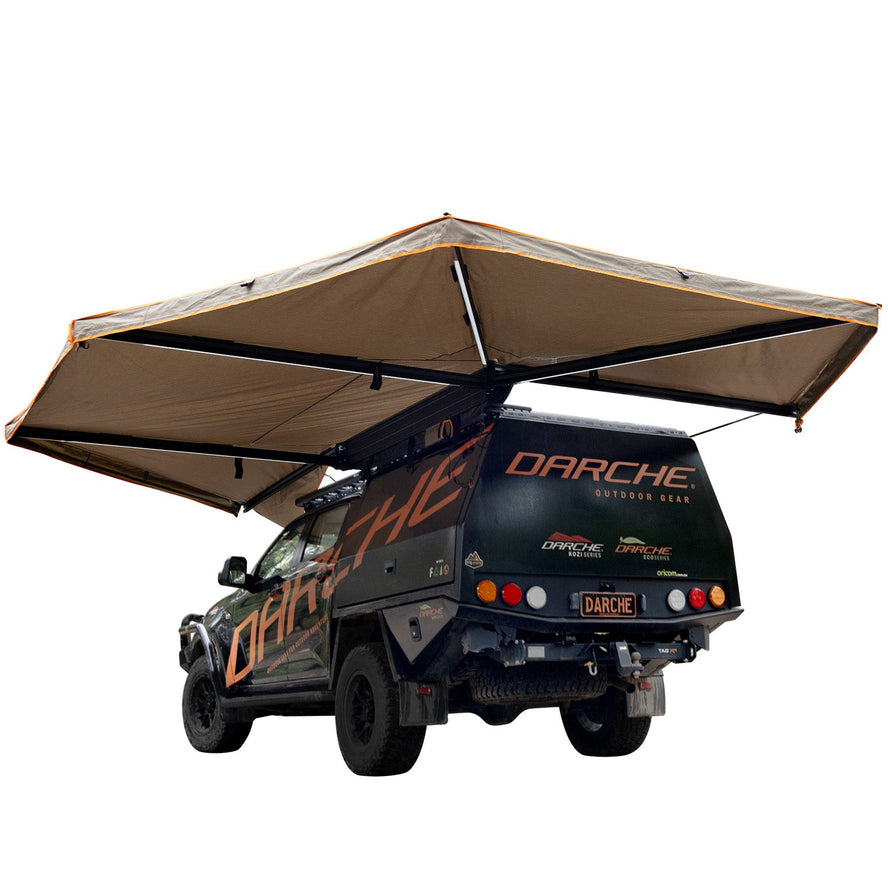

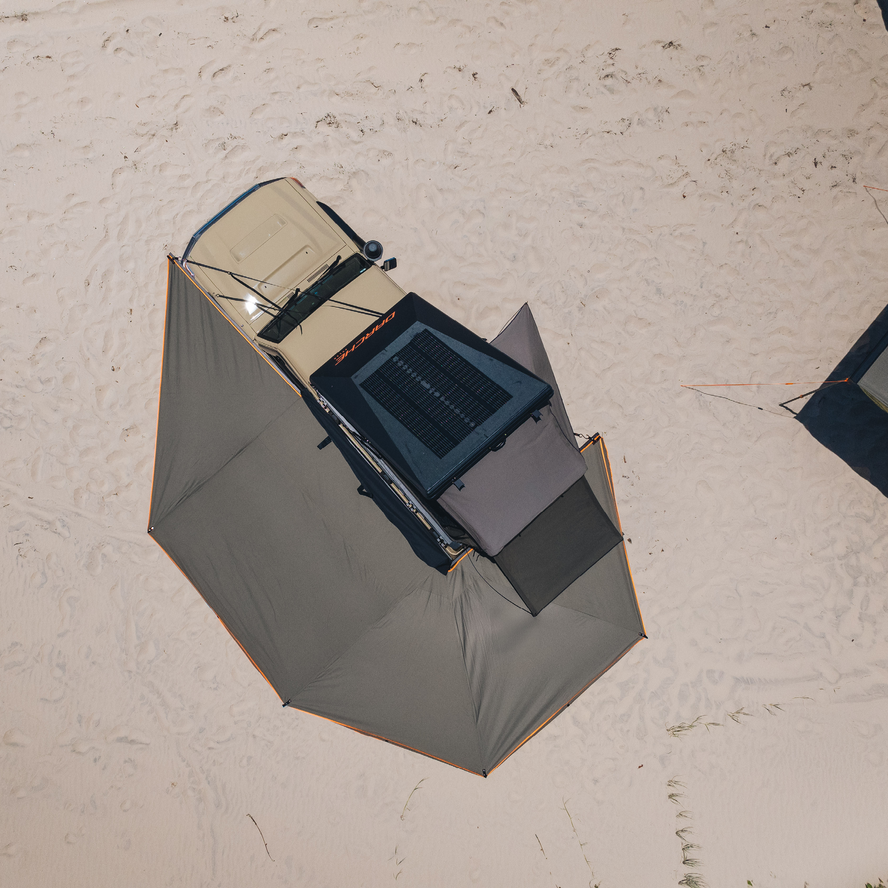

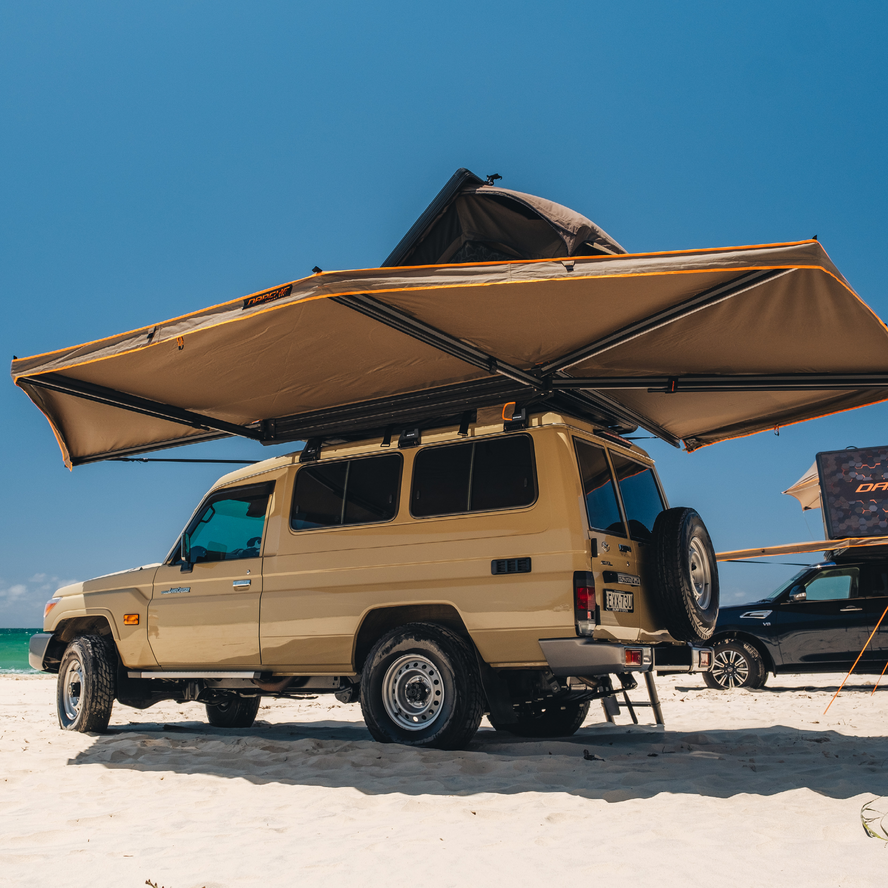

- Freestanding 270° awning with 124 sq ft (11.5 m²) of coverage, side and rear
- Sets up in under a minute
- Up to 221 sq ft (20.5 m²) with walls (sold separately)
- The only freestanding awning on the market with a science-backed wind rating
- Wind rated to 19 mph (30 km/h) freestanding and 37 mph (60 km/h) pegged down
- 30 days of real-world wind testing
- Built-in break points protect your vehicle

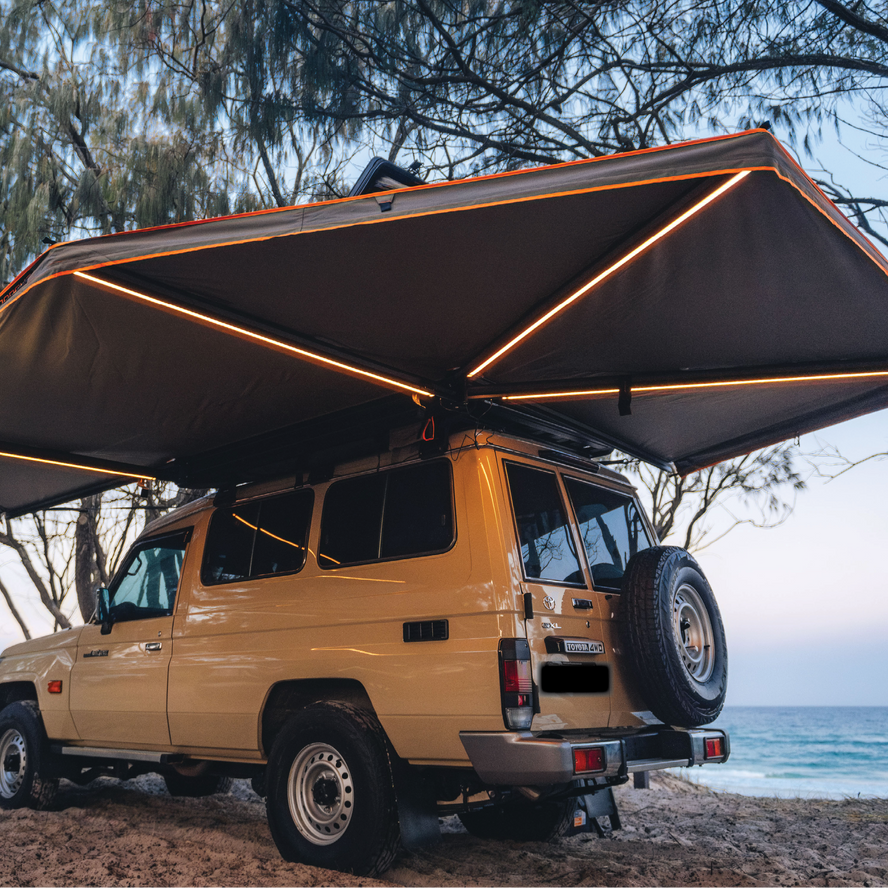

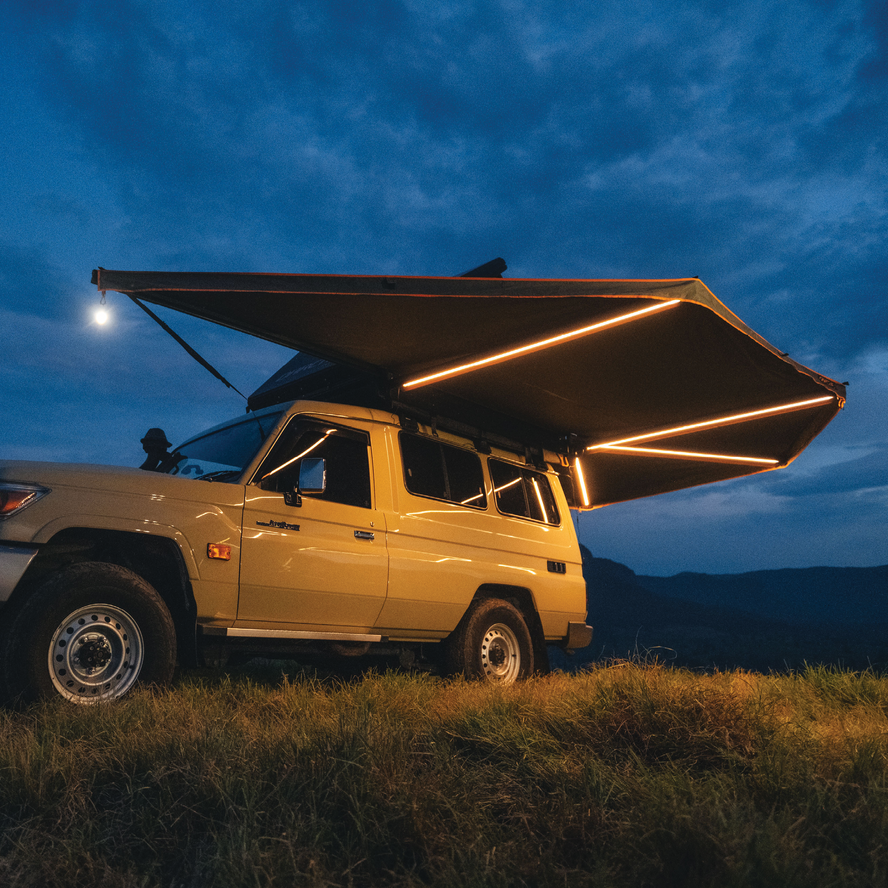

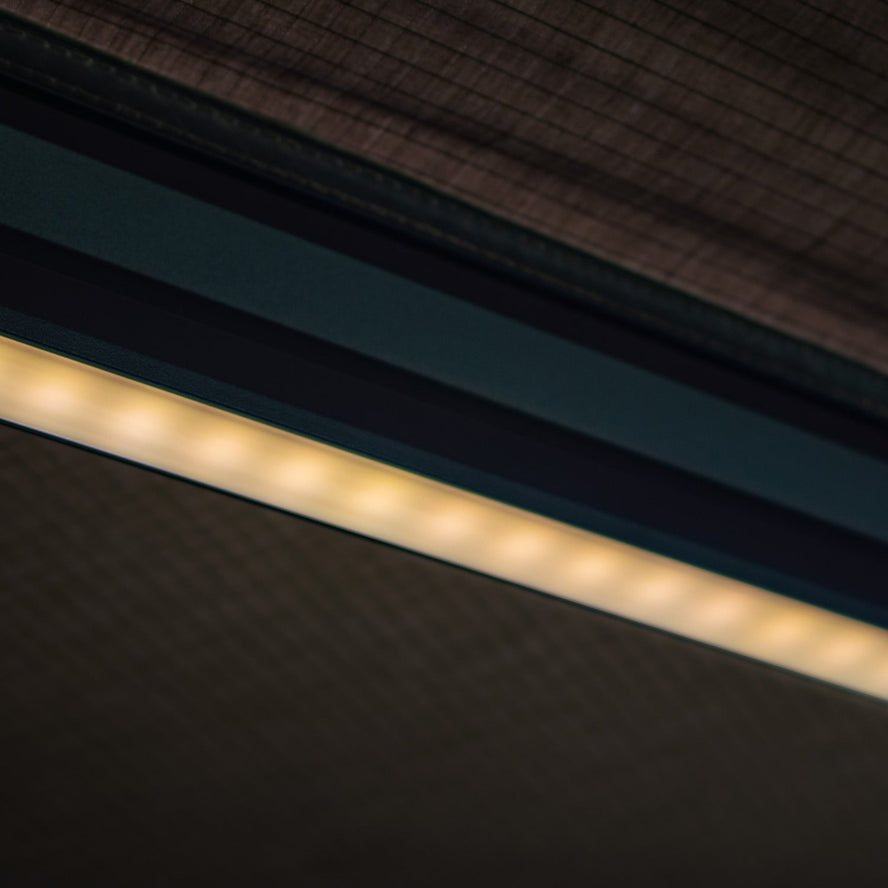

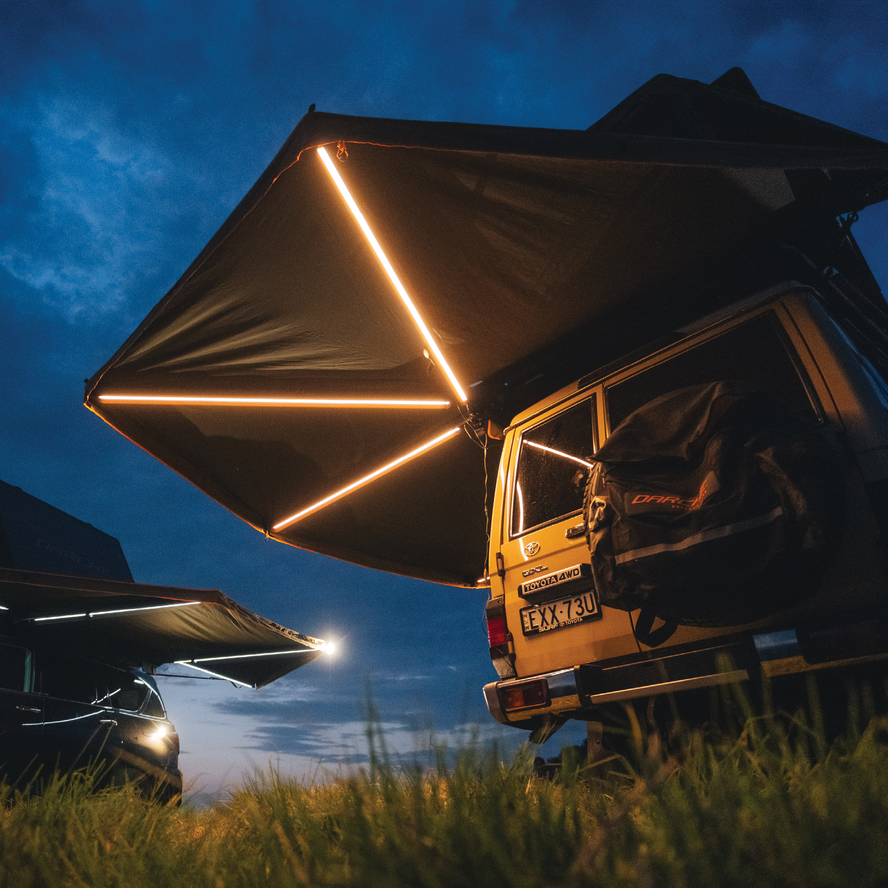

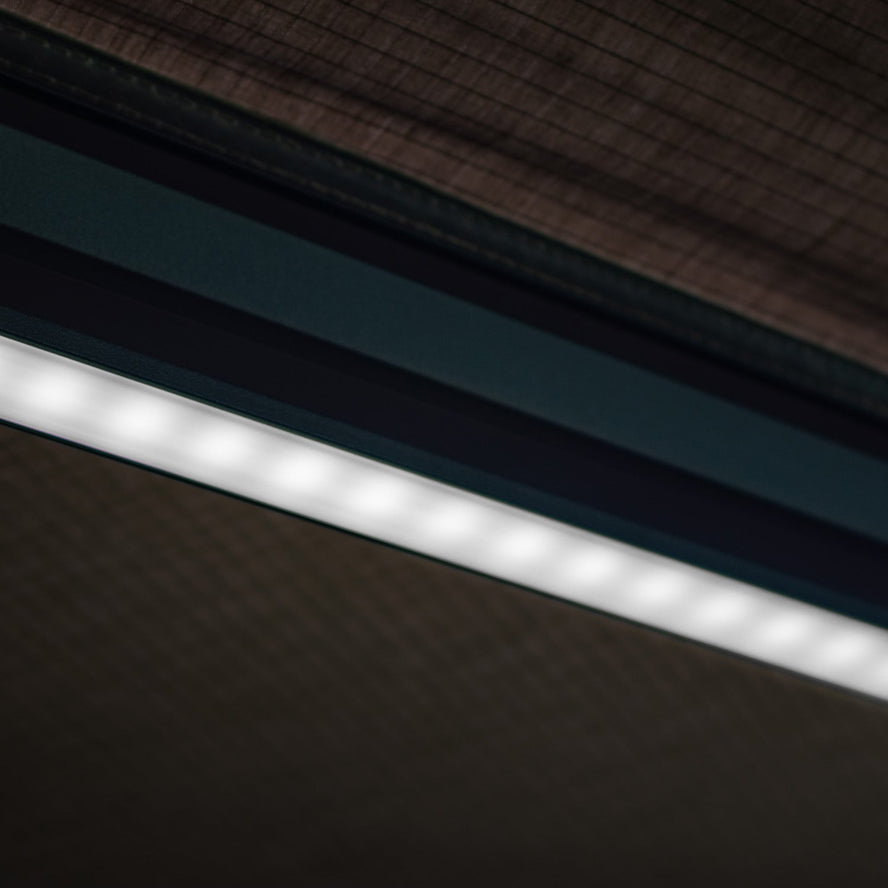

- 4 built-in dual-color (amber and white) dimmable LED strips (power bank or USB port not included)

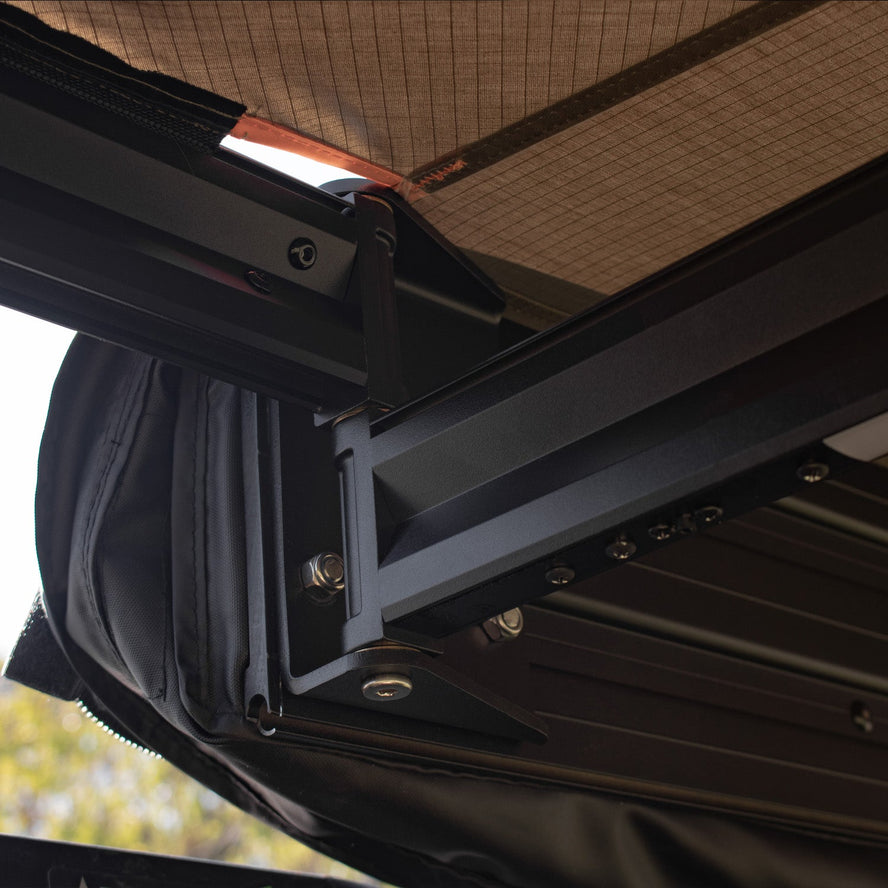

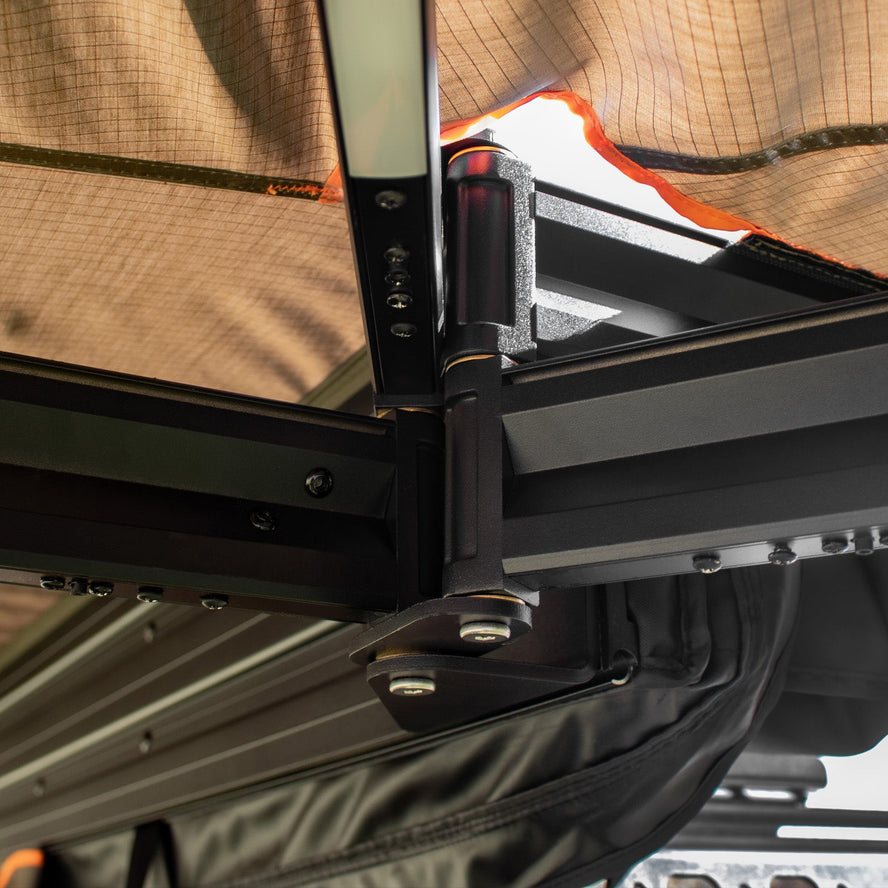

- Black powder-coated X-tube aluminum alloy rafter arms, backing plate, and hinges
- 320 gsm ripstop polycotton canvas, 3000 mm waterhead rating, UPF 50+

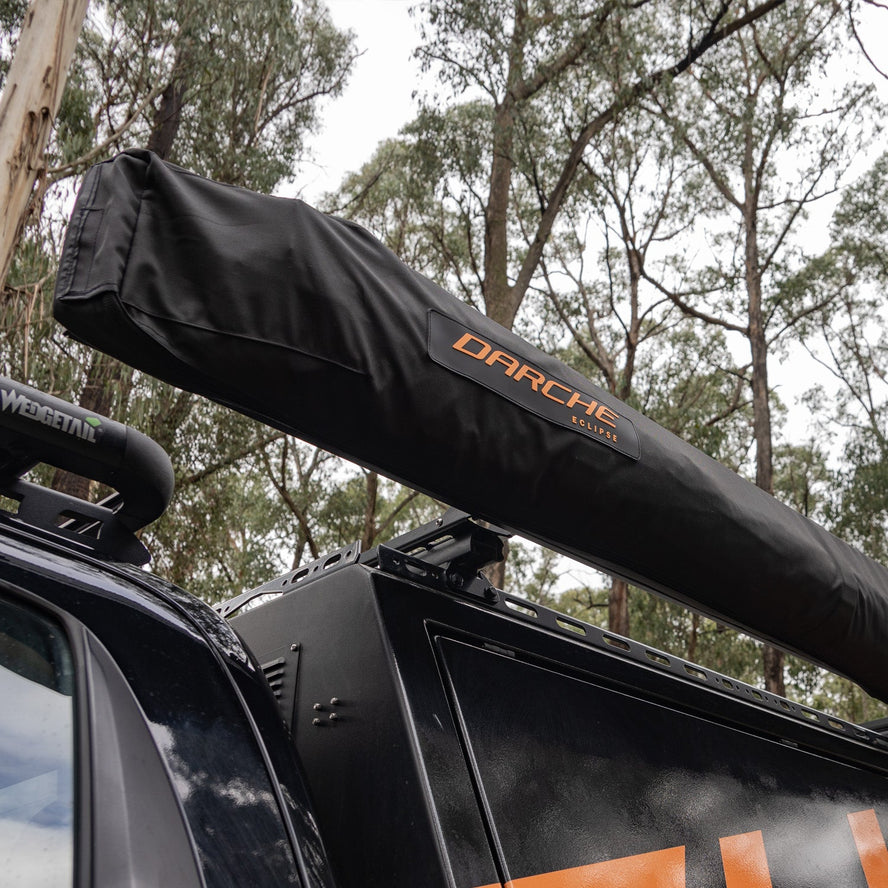

- Fully enclosed 820D polyester Oxford transit cover

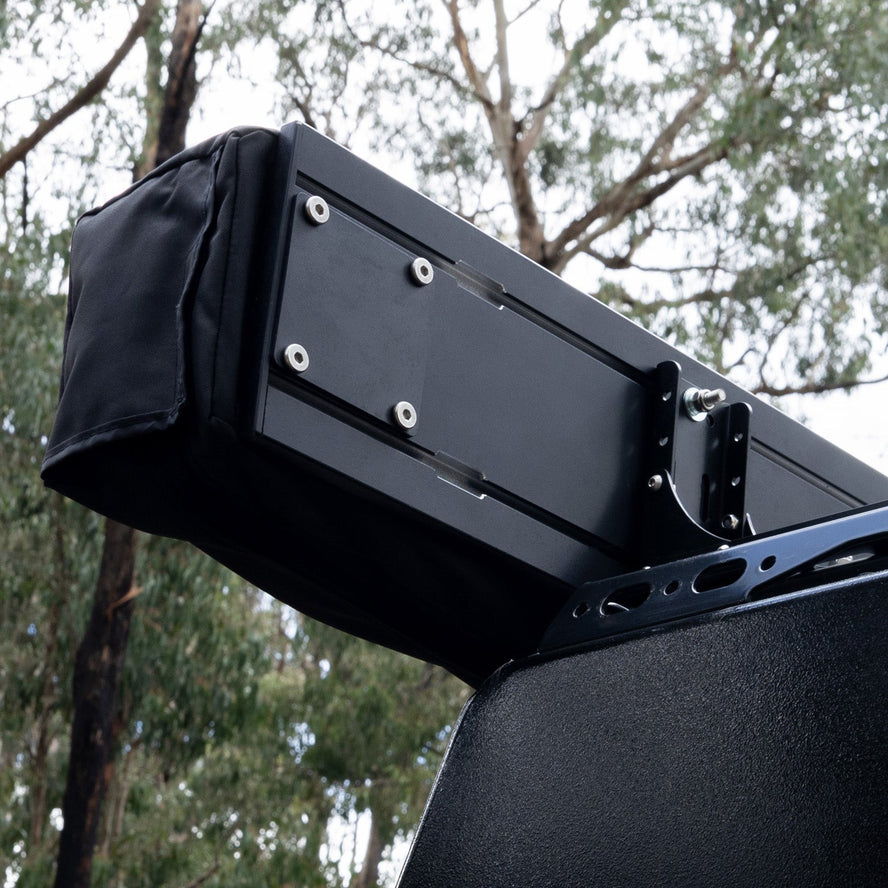

- Two-piece backing plate for moving between vehicles
- Height-adjustable mounting brackets
- Suits vehicle heights from 4' 7" to 8' 6" (1400 to 2600 mm)
- Up to 8' 6" (2600 mm) of headroom

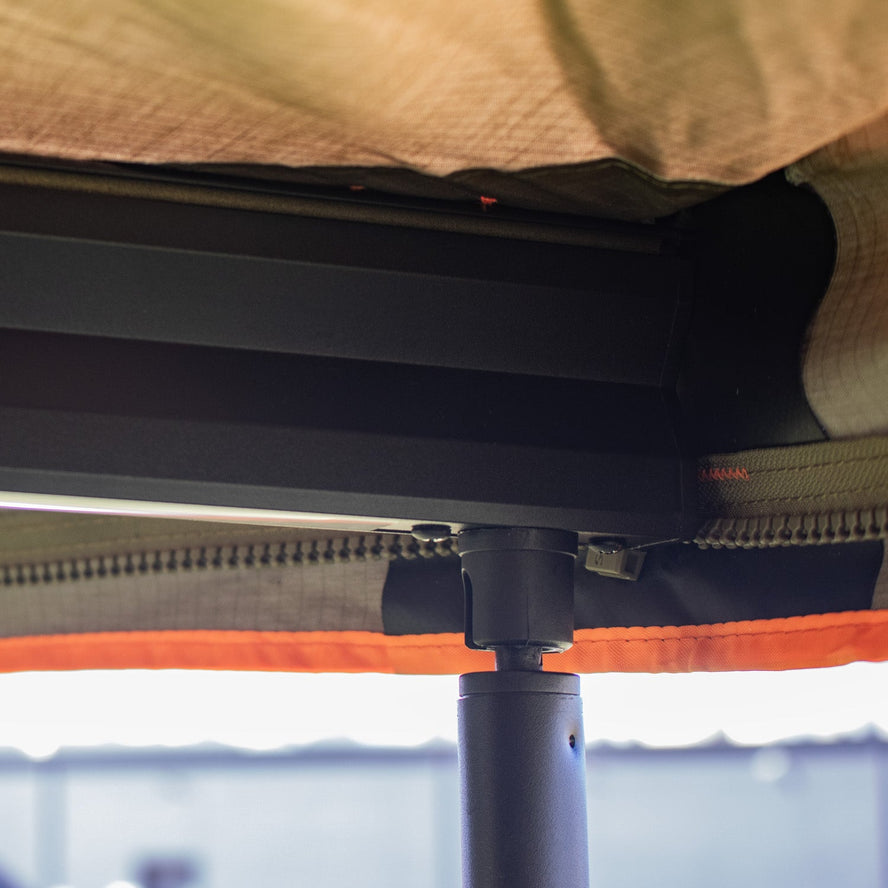

- 3 support poles and guy ropes included
- All parts replaceable
- Left-hand (driver's side) or right-hand (passenger side) mount
- 3-year warranty
Product configuration may vary from photos. Shown with walls and other optional extras, available separately. Please verify exact specifications and contents before purchase.
Installation Notes
The included brackets fit most roof racks and steel basket setups. Some platform racks need long awning brackets (T050801751B or T050801753). To mount the awning straight to a rooftop tent, you'll need a rooftop tent awning bracket kit (T050801945 or T050801946), and the support poles need to be set any time it's open. Check that your roof mounting system is rated for the load. If you're not sure what your setup needs, ask your local roof rack specialist or get in touch with us.
Download the Eclipse 270 Freestanding instruction manual (PDF)
Frequently Asked Questions
How long does the Eclipse 270 Freestanding take to set up?
Under a minute. Swing it out and extend the rafter arms. No ground poles are needed, though we'd add them and the pegs if the weather looks unsettled.
Does it really stand up without poles?

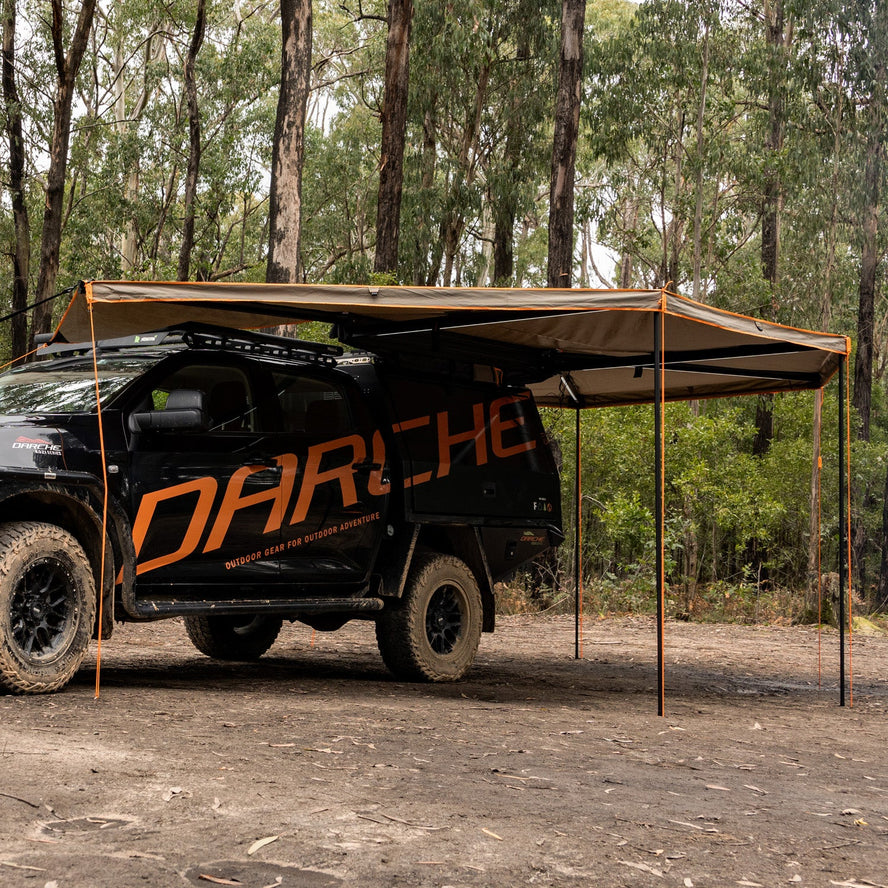

Yes. It's rated to 19 mph (30 km/h) with no poles. With the three included poles set and pegged, it's rated to 37 mph (60 km/h), and that's how we'd leave it if you're staying overnight.
Can I mount it to a rooftop tent?
Yes, with a rooftop tent awning bracket kit. The support poles need to be set any time the awning is open so it doesn't strain the tent.
Which side should I order?
Whichever side keeps your rear door clear. Left-hand works for vehicles with the rear door hinged on the passenger side, like the Jeep Wrangler and Ford Bronco. Right-hand works for vehicles with the rear door hinged on the driver's side, like the Toyota FJ Cruiser and Mercedes G-Class.
Will it fit my vehicle?
It suits vehicle heights from 4' 7" to 8' 6" (1400 to 2600 mm), and the included brackets fit most roof racks and steel baskets. Some platform racks need long brackets. Send us your vehicle and rack, and we'll check the fit.

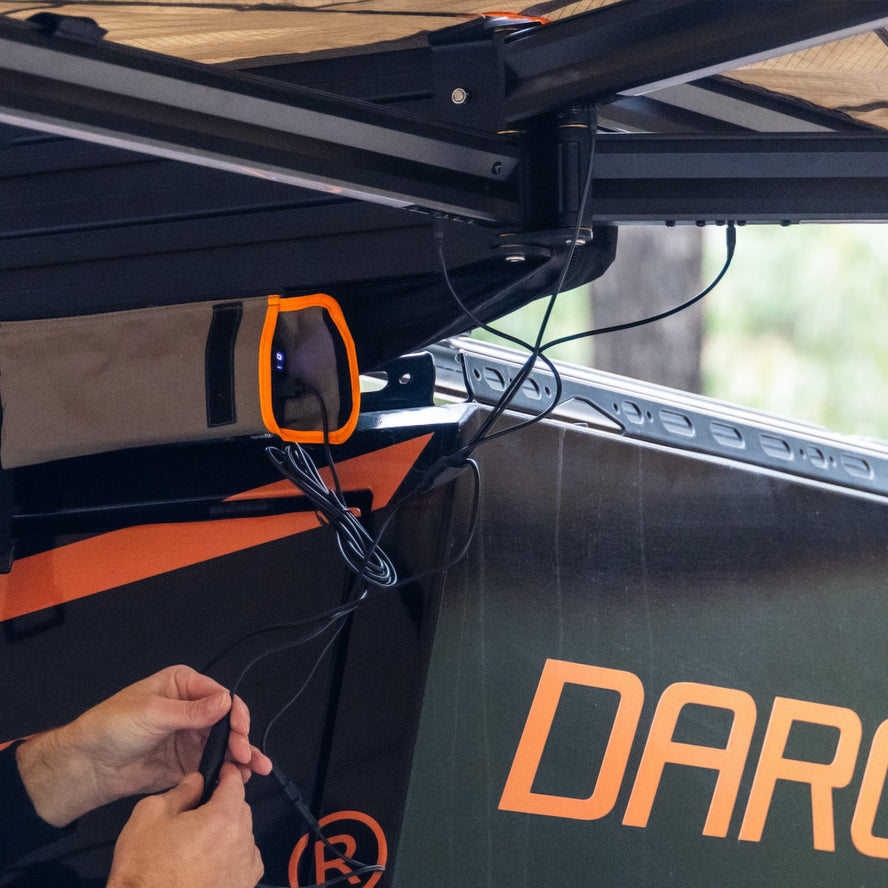

What powers the LED lights?
A power bank or USB port, not included.
Should I get the 270 Freestanding or the 270 Gen 2?
They cover the same area. The 270 Freestanding stands on its own, has LED lights built in, and has a 3000 mm water rating. The Eclipse 270 Gen 2 costs less, but it has to be anchored whenever it's open.
What walls fit this awning?

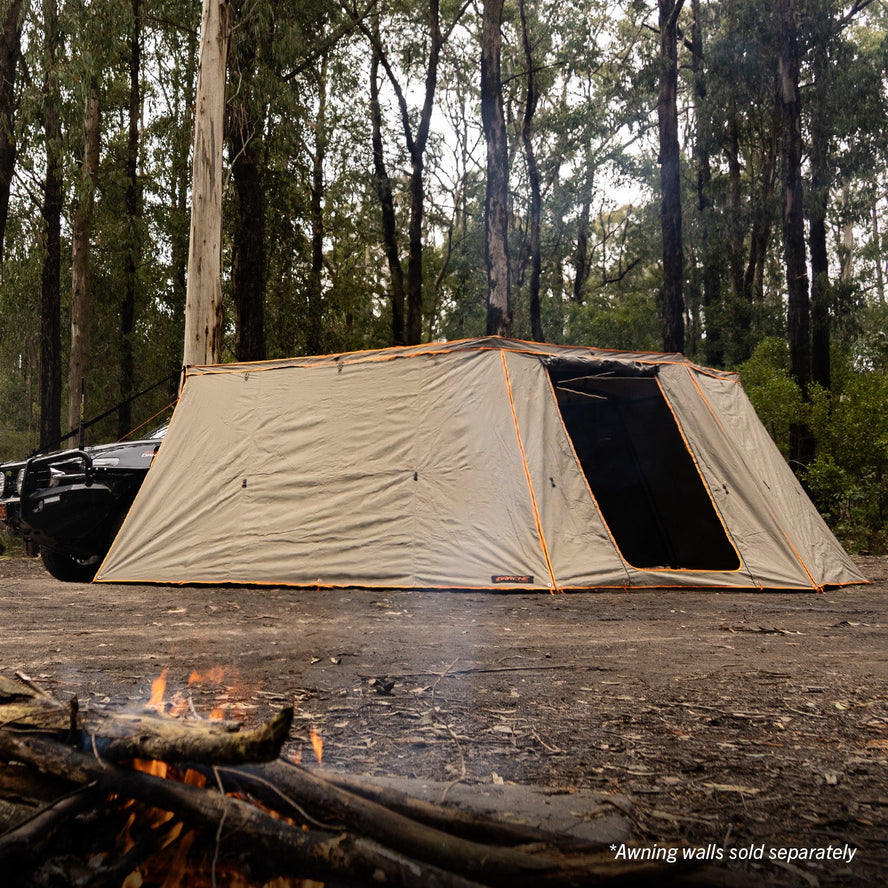

The Eclipse 270 Mesh Wall Set. Order the same side as your awning. With all three walls up, you get 221 sq ft (20.5 m²) of coverage.
Does the Retreat Annex fit?
Yes. The Eclipse Retreat Annex fits with some minor drilling.
Can I move it to another vehicle?
Yes. The backing plate comes apart in two pieces, so you can unbolt it and move it without redoing the whole install.
What's the warranty?
3 years. Damage from extreme weather isn't covered, but every part can be replaced if something breaks.
